Door panel retainers may be small, but they play a big role in keeping your vehicle’s interior panels secure and rattle-free. Anytime a door panel is removed, whether to upgrade speakers, replace weatherstripping, or fix an exterior mirror, these clips are put to the test. More often than not, they break during removal, leaving you with a loose panel or missing fasteners.
That’s why it is smart to plan ahead and have replacements ready. At Raybuck Auto Body Parts, we stock a wide selection of door panel retainers for a range of makes, models, and years. With over 70 different options available, we make it simple to find the right fastener so your repair goes smoothly from start to finish.
Key Takeaways
- Door panel retainers secure interior panels and prevent rattling, alignment issues and damage to wiring or seals.
- Clips often break when removing panels for tasks like upgrading speakers, replacing weatherstripping or repairing mirrors.
- Correct retainers are matched by hole size, stem length, head or washer diameter and material (nylon or metal).
- Raybuck carries over 70 styles that cover many makes and models including domestic and import vehicles.
- Proper removal and installation techniques reduce clip damage and ensure secure, professional repairs.
Did you know that Raybuck stocks retainers in both metric and US standard sizes for over 70 unique items?
What Are Door Panel Retainers?
Door panel retainers, often referred to as clips, are small fasteners designed to hold your vehicle’s interior panels in place. They ensure the door panel sits flush against the frame, preventing rattling, misalignment, and wear on weatherstripping. These retainers also protect wiring and seals by keeping everything properly aligned.
There are several different types of retainers:
- Nylon/Plastic Retainers: Lightweight, non-corrosive, and commonly used in modern vehicles.
- Metal Retainers: Strong and durable, but more prone to corrosion.
- Combination Designs: Clips with built-in washers or grommets for added stability and waterproofing.
Because each vehicle manufacturer uses unique specifications, retainers vary widely in size and shape. Hole diameters can range from 7 mm to 10 mm or larger, while stem lengths and washer diameters differ by application.
Example from Raybuck’s catalog:
Black Nylon Door Panel Retainer, 7 mm hole, 12.5 mm head, 19 mm stem (SKU: WF40135) — available in packs of 50 for quick and cost-effective repairs.
These small details matter. Using the correct retainer ensures your repair holds up and the panel fits exactly as intended.
Why Retainers Fail
It’s common to find broken clips after removing a door panel. Retainers are designed to grip tightly, but this makes them susceptible to breaking when pulled out.
Here are the main reasons door panel retainers fail:
- Age and Wear: Nylon clips become brittle after years of exposure to heat and cold cycles.
- Removal Stress: Panels are often pried off quickly, causing clips to snap under pressure.
- Single-Use Design: Many clips are engineered for one installation and cannot be reused.
- Corrosion: Metal clips can rust, especially in areas exposed to moisture and salt.
Even with careful removal, a portion of retainers will usually break. That’s why most technicians and DIYers keep replacement packs on hand. Having the correct clips ready ensures that when the panel goes back on, it stays secure and free from rattles.
Choosing the Right Retainers for Your Vehicle
Not all retainers are created equal. To find the right fasteners, it’s important to match them to your vehicle’s specifications.
Key factors to check:
- Hole Size: Common sizes include 7 mm, 8 mm, 10 mm, and 1/4 inch.
- Stem Length: Determines how securely the clip locks into place.
- Head/Washer Diameter: Impacts the surface area that holds the panel.
- Material: Nylon for flexibility and resistance to corrosion, or metal for strength.
Raybuck Auto Body Parts makes it easy to shop by year, make, and model.
Example Products:
| Product Name | Size | Pack | SKU |
| Black Nylon Retainer | 7 mm hole, 18 mm stem | 25 | WF40144 |

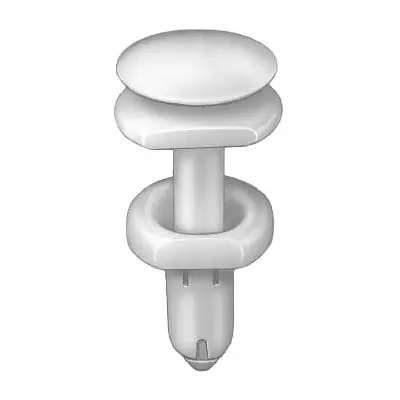

| GM Truck C/K Retainer | 7 mm hole | 25 | WF43814 |
| Hyundai/Kia Retainer | 10.7 mm | 50 | WF40795 |
By checking these details, you’ll ensure a snug fit and professional-quality repair.
Removing Old Panels Without Breaking Every Clip
While many retainers will inevitably break during removal, using the right approach can minimize losses.
Tools Needed:
- Panel removal tool or trim tool
- Flathead screwdriver
- Phillips screwdriver or Torx driver (depending on vehicle)
Steps:
- Locate screws and bolts: Often hidden behind handles or trim pieces.
- Loosen all fasteners: Remove mechanical fasteners before prying.
- Work around the edges: Use a panel tool to gently pop clips out one at a time.
- Avoid corner stress: Prying from one spot can break multiple clips.
For older vehicles, warming brittle nylon clips with a heat gun on a low setting may make them less prone to cracking. A light spray of lubricant around the edge can also help.
Even with proper care, some clips will snap. This is normal and another reason why having Raybuck’s replacement retainers ready before beginning the job is essential.
Installing New Door Panel Retainers
Once the old panel has been removed and cleaned, it’s time to install new clips. Proper installation ensures the door panel stays secure.
Best Practices for Installation:
- Clean mounting holes: Remove dirt, rust, and broken clip pieces.
- Align the panel: Hold the panel in the correct position before inserting clips.
- Push straight in: Avoid pressing at an angle to prevent clip or panel damage.
- Listen for the snap: Most retainers click into place when seated correctly.
Example Products for Replacement:
- Hyundai/Kia 10.7 mm Door Panel Retainer, PK 50 (WF40795)

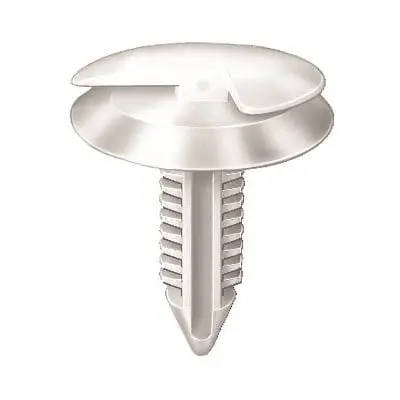

- Door Panel Retainer, 1/4″ Hole, PK 50 (WF40055)
- Ford Retainer, 11/32″ Hole, 3/4″ Head, PK 50 (WF40295)
After installation, test the panel by gently pulling on it and closing the door. A properly installed retainer will hold firm without rattles or gaps.
Raybuck’s Door Panel Retainer Selection
Raybuck Auto Body Parts carries over 70 different door panel retainers in both metric and U.S. standard sizes. Our catalog covers vehicles from the early 1990s through the mid-2010s, with retainers for domestic and import brands alike.
We stock trusted names like Auveco and Disco Automotive, giving you confidence in both fit and durability. Products are available in a variety of pack sizes, from small quantities to packs of 50 for larger jobs. With our easy filtering system, finding the right part is simple.
Conclusion & Maintenance Tips
Door panel retainers are inexpensive but vital to every panel removal job. Since they often break during disassembly, it pays to have replacements ready. Always match the clip to your vehicle’s specifications and follow best practices for removal and installation. Raybuck Auto Body Parts makes it easy to find the exact retainers you need for a professional-quality repair.
