Ford Super Duty Cab Corner Replacement Guide

March 16, 2026 | By: Word Heroes |Categories: Ford

What Are Cab Corners and Why They Matter

Cab corners are the lower rear panels on the cab of a truck. On Ford Super Duty pickup trucks, these panels often experience corrosion due to exposure to moisture, dirt and road salt. When water collects around the wheel wells and lower cab areas it can lead to rust forming from the inside out. Corrosion in the cab corner area can weaken the truck structure and detract from the appearance of the vehicle.

For Ford Super Duty owners, addressing rust early can prevent further damage. When rust has eaten through the panel or the area has been dented by impact, a replacement panel is usually the best option. Raybuck Auto Body Parts provides quality replacement cab corners designed to restore strength and appearance to your truck cab.

Key Takeaways

Ford Super Duty cab corners are prone to rust due to moisture and road salt buildup.
Visible rust holes, paint bubbling, and panel separation are signs replacement is needed.
Raybuck Auto Body Parts offers stamped steel cab corners for 1999 to 2016 Super Duty models.
Panels are coated for corrosion protection and ready to be painted after installation.
Proper cutting, welding, sealing, and finishing are essential for long term durability.

Did you know moisture often causes cab corners to rust from the inside out before surface damage is visible?

Signs Your Ford Super Duty Needs Cab Corner Replacement

Inspecting your cab corners regularly can help you identify rust or damage before it spreads. The following are common indicators that a cab corner panel needs to be replaced.

Visible Rust and Metal Loss

Rust that has progressed into holes or heavy pitting suggests the panel cannot be restored by simple patching. Visible metal loss indicates the area may need a full panel replacement.

Paint Bubbles or Flaking Paint

Bubbles in the paint or paint peeling near the lower rear of the cab often means corrosion is forming beneath the surface. This can spread if left untreated.

Panel Separation or Weakness

If the panel appears to be pulling away from the cab or feels weak when pressed, the underlying metal could be compromised. Corrosion can cause separation at seams and joints.

Dents and Impact Damage

Dents in the cab corner can trap moisture which speeds up rust formation. Severe impact damage can also weaken the panel and surrounding structure.

Choosing Replacement Cab Corners from Raybuck Auto Body Parts

Raybuck Auto Body Parts offers replacement cab corner panels for 1999 to 2016 Ford Super Duty trucks. These panels are designed to match the fit and form of the original metal while addressing common areas of rust.

Available Panel Configurations

We offer a range of options to fit different cab styles:

Panel Type	Description
Regular Cab with Extensions	Designed for cab body rust repair with extra material for overlap
Crew Cab with Extensions	Includes extensions to cover larger rust areas

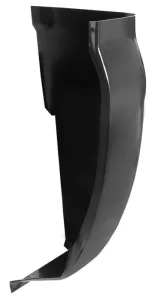

Super Cab with Extensions	Fits extended cab models with broader coverage

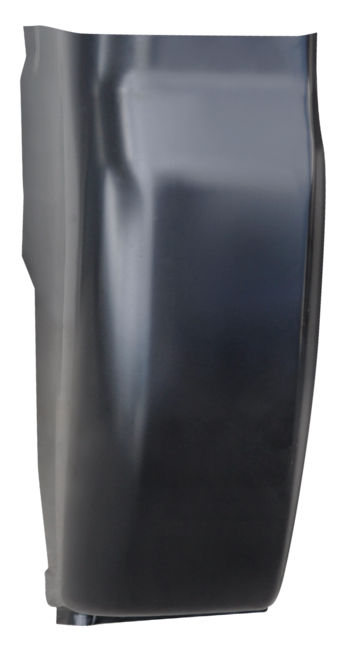

Without Extensions	Basic panel for direct replacement where extension material is not needed

These options allow you to choose the correct panel for your truck model and rust repair needs.

Side and Fitment Options

Raybuck replacement cab corners are available for both the driver side and passenger side of the cab. Panels are manufactured to fit specific cab configurations such as regular cab, crew cab and super cab.

Panel Construction Features

Each panel is manufactured from stamped steel. Steel panels from Raybuck Auto Body Parts are treated with an e coating to help protect the replacement metal from corrosion once installed. The surface is black and ready to be painted after installation.

Tools and Preparation Needed for Replacement

Preparation and the right tools are important for a successful cab corner replacement. The tools and steps listed below will help guide the process and improve efficiency.

Tools You Will Need

Before you begin, gather the following:

Angle grinder with cutting and grinding wheels
MIG or TIG welder
Clamps or welding magnets
Seam sealer
Rust inhibitor
Primer and body filler
Sandpaper and paint supplies
Safety gear including gloves, eye protection and a welding helmet

Preparation Steps

Clear the work area around the rear cab corner so you have room to work safely.
Raise the truck on jack stands if necessary to gain clear access to the lower panel. Depending on the extent of the rust damage, you may need to unbolt the truck bed and slide it back slightly to access the rear of the cab corner. This provides a better working room for cutting, welding, and sealing. Be sure to disconnect wiring, fuel filler components, and properly support the bed before moving it.
Clean the surface to remove loose rust and dirt. This helps you see where the existing panel needs to be cut.
Label parts and hardware so you can keep track of components during disassembly and reassembly.

Proper preparation reduces the risk of mistakes and helps make each step of the replacement process more efficient.

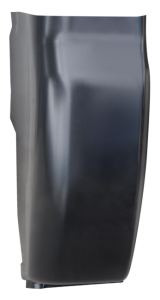

Step by Step Replacement Process

This section outlines a general process for removing the old cab corner and installing a new replacement panel from Raybuck Auto Body Parts.

Remove the Old Panel

After ensuring you have adequate rear access to the cab corner, use the angle grinder to carefully cut away the rusted or damaged panel area. Focus on removing only the metal that needs to be replaced, keeping surrounding bodywork intact. After cutting, use a grinding wheel to smooth edges and remove remaining rust.

Test Fit the New Panel

Hold the replacement cab corner in place to ensure it fits correctly. Verify that the panel aligns with the adjacent body lines and covers the area to be replaced. Adjust as needed before you begin welding.

Tack and Weld the Replacement Panel

Clamp the panel in place and start with tack welds. This allows you to confirm the fit and make minor adjustments before completing the full weld. Once alignment is correct, continue welding the panel in place.

Smooth Welds and Prepare for Finishing

After welding, grind down the weld beads to create a smooth surface. Clean the area and prepare it for sealing and finishing work.

Protect and Seal the Repair Area

Apply seam sealer around the welds and along the edges of the replacement panel. Use a rust inhibitor on exposed metal surfaces. This protects against moisture infiltration which can lead to future corrosion.

Fill, Sand, and Paint

Apply body filler to blend the new panel into the existing cab surface. Sand the filler smooth and prepare the area for paint. Apply primer and finish with paint that matches your truck color.

Post Replacement Care and Long Term Maintenance

After the installation and painting process is complete, preserving your cab corner repair will help it last longer.

Sealing and Protection

Apply seam sealer thoroughly to all joints and welded areas. This stops moisture from entering and causing rust beneath the surface.

Regular Washing and Inspection

Regularly wash your truck, especially after winter driving or exposure to salty roads. Inspect cab corners periodically for signs of rust, paint chips or damage.

Touch Ups and Paint Care

Address any paint chips or scratches immediately. Small areas of exposed metal can become rust spots quickly if left unattended.

Conclusion: Ford Super Duty Cab Corner Replacement

Replacing a rusty or damaged cab corner on a Ford Super Duty pickup truck can restore strength and improve appearance. Raybuck Auto Body Parts offers quality replacement panels for Super Duty models, including options for different cab styles and configurations.

With the right tools and preparation, you can complete a professional repair. Long term maintenance such as regular washing and inspection will help protect the repair and keep your truck looking its best.

Shop quality Ford Super Duty cab corner panels at Raybuck Auto Body Parts and restore strength and protection to your truck today. Contact us with any questions.
