Secure Fit with Auto Body Panel Adhesives

How to Use Auto Body Panel Adhesives for a Secure Fit

Skip the Sparks: Why Bond Instead of Weld?

Bolted and spot‑welded flanges still rule in structural zones, but for many exterior skins, today’s automakers—and thousands of do‑it‑yourselfers—trust epoxy or urethane adhesives. Bonding eliminates weld‑heat distortion, keeps paint on the reverse side intact, and lets you work without a bulky welder or shielding gas. Adhesives also act as a continuous seam sealer, blocking future corrosion better than intermittent weld nuggets. That means less grinding, quicker finishing, and no pinholes to chase with filler.

Raybuck Auto Body Parts carries the same OEM‑approved cartridges, guns, and mixing tips used in professional collision shops, all backed by tech help from gearheads who restore their own trucks.

Key Takeaways

Adhesive bonding offers a cleaner, safer alternative to welding for exterior body panels, reducing heat distortion and improving corrosion resistance.
Two-part epoxies like 3M 8116 and Fusor 108B provide strong, rigid bonds ideal for quarter panels, roof skins, and aluminum beds.
Silaprene one-part adhesive remains flexible, making it a great choice for seams, drip rails, and patch-panel overlaps.
Proper surface prep and controlled clamp pressure are essential for a strong, lasting bond—overclamping or skipping steps can weaken the joint.
Post-bonding care, including rustproofing and respecting cure times, ensures durability and factory-quality results for years to come.

Tool tip: Always purge the first inch of adhesive from a new mixing tip.
Skipping this step means unmixed product—and a weak bond.

Know Your Glue: Main Types of Panel Adhesives

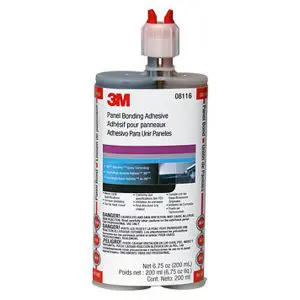

Two‑part epoxies cure into a rigid, steel‑like bond. Our best‑sellers—3M 8116 Panel Bond and Fusor 108B—mix 1:1 inside the nozzle, giving 40‑ to 60‑minute open time and clamp‑free handling strength in about two hours. They’re OEM‑approved for quarter panels, bed sides, door skins, and even aluminum bonding when used with the correct surface primers.

One‑part Silaprene urethane/silicone hybrid flows from a standard caulk gun, skins over in hours, and remains slightly flexible to absorb vibration—ideal for drip rails, interior seams, and patch‑panel overlaps on classics that flex.

Quick‑Compare Adhesive Specs

Adhesive	Mix Ratio	Working Time @ 70 °F	Clamp Time	Full Cure	Flexibility	Typical Uses
3M 8116 Panel Bond	1 : 1	60 min	2 hrs	24 hrs	Rigid	Door/quarter skins
Fusor 108B Epoxy	1 : 1	40 min	2 hrs	6 hrs	Rigid	Roof & bed panels
Silaprene One‑Part	N/A	4–6 hrs	6–8 hrs	24–48 hrs	Flexible	Seams & trim

Where Adhesive Bonding Shines

Bonded seams excel any place you can access both mating flanges and don’t need to grind a visible weld bead. Common wins:

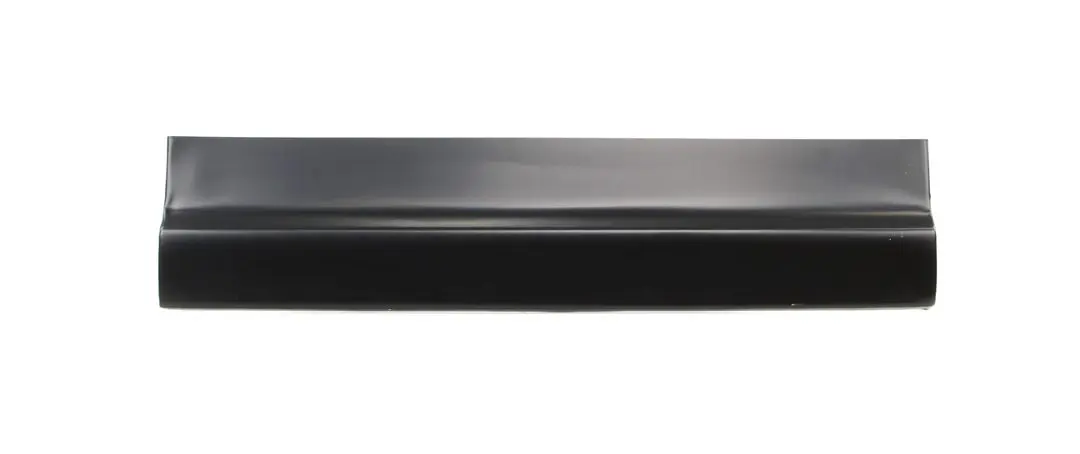

Door and quarter skins – perfect for large, thin panels that warp easily under heat.
Roof skins – no sparks near glass or headliner.
Aluminum truck beds – avoids galvanic corrosion from dissimilar‑metal welds.
Patch overlaps on antiques – preserve that original inner finish.

On structural rockers or cab mounts, follow OEM blend‑procedures that combine adhesive beads with spot welds for crash integrity.

Surface Prep & Safety First

Strip to bare metal on both mating flanges; leave a toothy 80‑grit scratch for mechanical grip.
Clean twice—first with wax/grease remover, then with a lint‑free panel‑prep wipe.
Dry‑fit everything and scribe clamp locations; you won’t have time to think once the clock starts.
Protect yourself: nitrile gloves, eye protection, solvent‑rated respirator. Unlike welding, adhesives generate no UV arc but can irritate skin and lungs.

Temperature matters. Keep cartridges and the panel area between 70 °F and 90 °F for predictable flow and cure.

Gear Checklist

Dual‑component applicator gun sized for 50 mL or 200 mL cartridges (Fusor or 3M models)
Static mixing tips—always start with a fresh tip.
Cleco pins, locking pliers, or panel‑holding clamps.
Plastic panel wedges to set consistent gaps.
Flanging tool and self‑piercing rivets, if duplicating OEM reinforcement.
Disposable acid brushes for smoothing fillets.

Everything above ships from Raybuck Auto Body Parts, and U.S. orders over $189 ride free to your door.

Step‑by‑Step Bonding Guide

Warm and purge. Place the cartridge upright, snap on a new mixing tip, and dispense a one‑inch ribbon onto scrap cardboard to ensure equal parts are flowing.
Lay the bead. Apply a 3/8‑inch stripe on both mating flanges for full wet‑out; continuous contact equals strength.
Set the panel. Mate parts within the stated working time—40 to 60 minutes for most epoxies, several hours for Silaprene. Use plastic wedges to preserve a 0.020‑ to 0.040‑inch adhesive thickness; metal‑to‑metal squeeze‑out starves the joint.
Clamp lightly. Even pressure beats brute force. Too much clamp load will force adhesive out of the joint.
Add screws if required. Some OEM repair manuals call for self‑piercing screws along hem flanges. Install while adhesive is wet; remove them after cure and fill holes.
Tool the fillet. With a gloved finger or acid brush, smooth squeeze‑out into a concave bead that sheds water.
Clean excess. Wipe uncured epoxy with solvent; cured beads will require gentle scraping.
Wait. Respect the minimum clamp time—usually two hours at 70 °F for epoxies, 6–8 hours for Silaprene. Heat lamps or a closed‑door garage warmed to 90 °F can halve cure times, but never exceed 140 °F unless the TDS approves it.

Cure, Clamp, Repeat: Timing Matters

Adhesives continue to build strength after the clamps come off. Full cure for Fusor 108B reaches in six hours at room temperature; 3M 8116 needs a full 24 hours before you grind, prime, or paint. Silaprene remains sandable after roughly two days. Warmer temps speed everything—rule of thumb: every 10 °F rise cuts cure time by about 50 percent. Always let panels return to ambient temperature before painting to avoid solvent pop.

Quick Quality Checks & Common Mistakes

Chisel test: Bond two scrap coupons, cure, then pop apart; metal should tear before adhesive.
Thickness gauge: Verify a 0.02‑in. adhesive layer; zero gap = zero strength.
Common pitfalls:
- Over‑clamping until the bond line goes dry.
- Forgetting to purge the first inch of unmixed product.
- Bonding over factory E‑coat without first grinding to bare steel.
- Re‑using a mixing tip after a coffee break—always install a fresh one.

Rust‑Proofing Bonded Seams

Before the adhesive skins, mist epoxy primer into hidden cavities through access holes; it will cure as the seam seals. After full cure, brush or spray cavity wax behind the joint and shoot rubberized undercoat on exterior wheel‑side seams. Repeat cavity‑wax treatment annually—adhesive bonds last decades, but only if protected from moisture and road salt.

Raybuck Auto Body Parts Advantage

Our warehouse stocks 3M, Fusor, and Silaprene cartridges, plus applicator guns and mixing tips—ready to ship the same day. Need help picking the right mix ratio or nozzle length? Call 888.789.7409 and speak with enthusiasts who glue sheet‑metal on the weekends, too. Free ground shipping on adhesive orders over $189 keeps projects on budget.

Conclusion: Auto body panel adhesives

Panel adhesives deliver factory‑level strength without weld splatter or heat distortion. Follow the prep, gap, and cure guidelines above, choose a proven cartridge from Raybuck Auto Body Parts, and your next patch panel, roof skin, or door shell will bond securely for the long haul. Check our adhesive section online and start your no‑spark repair today.
